AI’s New Memory Frontier: SK Hynix Unleashes 12-Layer HBM3e for Q3

Powering the Next Wave of AI: SK Hynix’s HBM3e Breakthrough

The insatiable demand for artificial intelligence is reshaping the technological landscape at an unprecedented pace, driving innovations across hardware and software alike. At the heart of this revolution lies memory, specifically High Bandwidth Memory (HBM), which has become the critical determinant for the performance of advanced AI accelerators. In this intensely competitive arena, SK Hynix’s 12-layer HBM3e mass production for Q3 2024 AI server demand emerges as a pivotal development, poised to redefine the capabilities of AI infrastructure. This advanced memory solution, characterized by its significantly increased capacity and unparalleled bandwidth, is not just an incremental upgrade; it represents a foundational shift necessary to fuel the next generation of large language models (LLMs) and complex AI workloads. This article will delve into the technical prowess, market implications, and transformative potential of SK Hynix’s latest HBM offering, providing a comprehensive analysis for technologists, investors, and industry watchers navigating the burgeoning AI landscape.

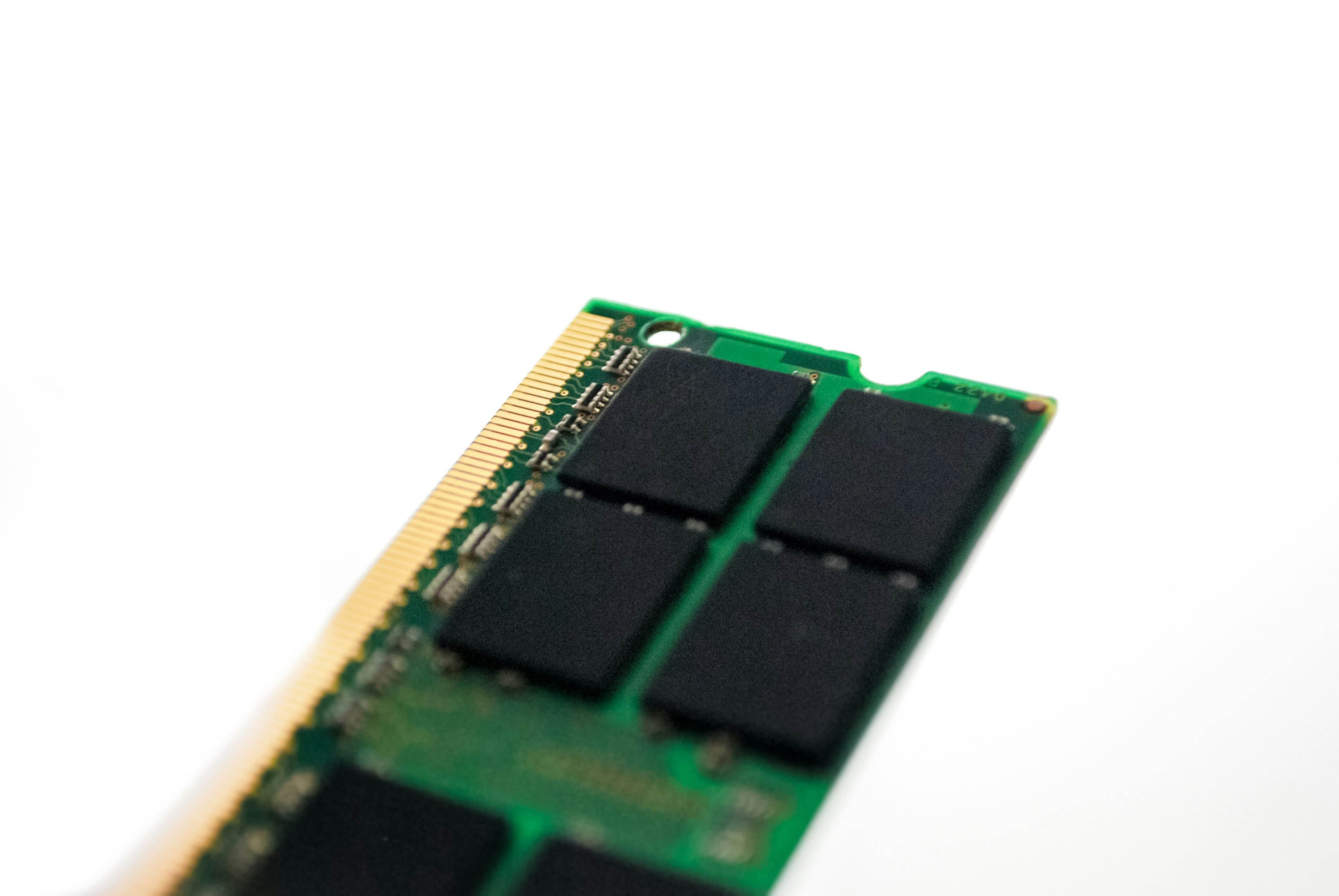

Photo by Akshar Dave🌻 on Unsplash

The Bottleneck Breaker: Why HBM3e Is AI’s Most Coveted Component

The advent of sophisticated AI models, particularly large language models (LLMs) and deep learning networks, has imposed unprecedented demands on computational resources. While Graphics Processing Units (GPUs) have become the de facto engine for AI training and inference, their sheer processing power can often be bottlenecked by the speed at which data can be fed to them. Traditional DRAM, designed for general-purpose computing, simply cannot keep pace with the massive data throughput requirements of modern AI workloads. This is precisely where High Bandwidth Memory steps in, and SK Hynix’s 12-layer HBM3e mass production for Q3 2024 AI server demand is not merely important; it is an indispensable catalyst.

At its core, HBM3e addresses two critical challenges: data throughput and capacity. AI models require billions, sometimes trillions, of parameters, necessitating colossal datasets for training. Moving these vast quantities of data between the GPU and memory at high speeds is paramount. HBM3e, with its dramatically higher bandwidth compared to preceding generations and standard DRAM, effectively widens this data highway. Furthermore, the 12-layer configuration significantly boosts the total capacity of a single HBM stack, allowing AI accelerators to hold more model parameters and larger datasets directly adjacent to the processing units. This increased capacity is crucial for avoiding constant data fetches from slower, off-chip memory, thereby reducing latency and accelerating overall computation. For AI server providers, this translates directly into the ability to offer more powerful, efficient, and ultimately more profitable AI instances, meeting the escalating requirements of enterprises and research institutions pushing the boundaries of AI. The timing for Q3 2024 mass production is also critical, aligning perfectly with anticipated demand surges as major AI players roll out their next-generation accelerators and expand their cloud AI services.

Unpacking the Engineering Marvel: How SK Hynix’s 12-Layer HBM3e Delivers Velocity

The technological leap represented by SK Hynix’s 12-layer HBM3e mass production for Q3 2024 AI server demand is rooted in advanced semiconductor engineering, pushing the boundaries of memory design. To fully appreciate its impact, it’s essential to understand the underlying mechanics of High Bandwidth Memory (HBM) itself and the innovations brought forth by the “e” iteration.

Unlike conventional DRAM (Dynamic Random-Access Memory), which uses a planar architecture where memory chips are spread out on a circuit board, HBM employs a die stacking approach. Multiple memory dies are vertically stacked atop one another, and crucially, interconnected using Through-Silicon Vias (TSVs). These TSVs are microscopic electrical connections that pass directly through the silicon dies, creating incredibly short and wide data pathways. This vertical integration drastically reduces the distance data needs to travel, minimizing resistance and capacitance, which in turn leads to vastly superior bandwidth and lower power consumption per bit compared to traditional memory interfaces.

HBM3e, the “extended” or “enhanced” version of HBM3, takes these advantages further. SK Hynix’s 12-layer configuration means that twelve individual DRAM dies are stacked within a single HBM package. Each die contributes to the overall capacity, allowing a single HBM3e stack to offer up to 36GB or even 48GB of memory. More critically for AI, HBM3e pushes the envelope on bandwidth. While HBM3 typically offers bandwidths around 819 GB/s per stack, HBM3e boosts this significantly, reaching upwards of 1.18 TB/s (terabytes per second) for SK Hynix’s offerings. This phenomenal throughput is achieved through higher clock speeds and optimized channel architectures, allowing AI accelerators to access and process data at unprecedented speeds.

Thermal management is another critical engineering challenge addressed in HBM3e. Stacking multiple layers of memory inevitably generates heat. SK Hynix employs advanced packaging techniques and thermal dissipation solutions, often involving innovative materials and structural designs, to ensure stable operation at these high speeds. This ensures that the memory can perform optimally even under sustained, heavy AI workloads without throttling. The combination of increased layers, enhanced bandwidth, and robust thermal management is what makes SK HBM3e a cutting-edge component, enabling the complex parallel processing and massive data handling capabilities required by today’s most demanding AI applications.

Unlocking New Horizons: Real-World Impact of HBM3e in AI Servers

The mass production of SK Hynix’s 12-layer HBM3e mass production for Q3 2024 AI server demand is not merely a technical achievement; it is a profound enabler with tangible impacts across various sectors. Its capabilities translate directly into more powerful AI solutions, driving innovation and efficiency in real-world applications.

Photo by ZENG YILI on Unsplash

Industry Impact: Supercharging AI Infrastructure

The immediate and most significant impact will be felt in the hyperscale data centers and cloud service providers that form the backbone of the AI industry. Major players like NVIDIA, Google, Microsoft, and Amazon are constantly seeking ways to enhance their AI accelerator platforms. HBM3e is a critical component for the latest generation of AI GPUs, such as NVIDIA’s Blackwell and Hopper architectures, as well as AMD’s Instinct MI series and Google’s TPUs. By integrating 12-layer HBM3e, these accelerators can:

• Train Larger Models Faster: The increased memory capacity and bandwidth mean that AI models with billions or even trillions of parameters can be trained more efficiently, reducing training times from weeks to days or even hours. This accelerates research and development cycles for cutting-edge AI.
• Handle More Complex Inference: For deployment, HBM3e allows for running larger, more sophisticated models with lower latency during inference. This is vital for real-time applications like autonomous driving, intelligent assistants, and complex financial fraud detection where immediate responses are paramount.
• Improve Energy Efficiency: While HBM consumes more power overall due to its performance, its efficiency per bit transferred is often superior to traditional DRAM, contributing to lower operational costs for data centers running intensive AI workloads.

Business Transformation: From Enterprise to Edge

The ripple effects of enhanced AI server capabilities will extend across various industries, fostering significant business transformation:

• Pharmaceutical and Biotech: Drug discovery and development will see accelerated simulations and analysis of molecular structures, potentially cutting years off the drug development timeline.
• Financial Services: Sophisticated AI models can perform real-time fraud detection, algorithmic trading, and personalized financial advice with greater accuracy and speed, leading to reduced losses and improved customer experiences.
• Manufacturing and Logistics: Predictive maintenance, supply chain optimization, and automated quality control powered by more capable AI servers will lead to higher efficiency, reduced downtime, and lower operational costs.
• Content Creation and Media: Generative AI for creating video, audio, and text content will become faster and more nuanced, opening up new avenues for digital artists and marketers.
• Edge AI Expansion: While HBM3e primarily targets data centers, the advancements in core AI capabilities enable more optimized, smaller models that can eventually be deployed on edge devices, expanding AI’s reach into smart cities, IoT, and embedded systems.

Future Possibilities: Redefining Human-Computer Interaction

Looking ahead, the widespread adoption of 12-layer HBM3e for AI servers paves the way for truly transformative possibilities:

• Multimodal AI: Models capable of seamlessly understanding and generating content across text, images, video, and audio will become more robust and commonplace.
• Personalized AI Companions: Highly sophisticated and context-aware AI assistants that truly understand individual needs and preferences could move beyond current capabilities.
• Scientific Breakthroughs: AI-powered research in fields like climate modeling, material science, and astrophysics will be able to tackle problems currently beyond our computational reach.

The arrival of SK Hynix’s 12-layer HBM3e isn’t just about faster chips; it’s about pushing the boundaries of what AI can achieve, bringing closer a future where intelligent systems play an even more integral role in solving complex global challenges.

The Memory Race: SK Hynix HBM3e Versus the Field

The high-bandwidth memory market is a fiercely competitive battleground, crucial for securing a dominant position in the broader AI ecosystem. SK Hynix’s 12-layer HBM3e mass production for Q3 2024 AI server demand positions them as a frontrunner, but understanding the competitive landscape is key to appreciating their strategic advantage and the broader market dynamics.

HBM3e vs. Previous Generations (HBM3, HBM2e)

The progression from HBM2e to HBM3, and now to HBM3e, represents continuous innovation in memory density and speed. HBM2e typically offered up to 3.6 Gbps per pin, yielding around 460 GB/s per stack. HBM3 significantly raised this, pushing speeds to 6.4 Gbps per pin and over 819 GB/s per stack, with capacities generally up to 24GB per stack. SK Hynix’s 12-layer HBM3e, with its 8 Gbps per pin and 1.18 TB/s bandwidth, along with 36GB or 48GB capacity per stack, offers a substantial leap. This generational improvement means:

• Superior Performance: The increased bandwidth directly translates to faster data access for AI accelerators, reducing idle time and boosting Teraflops (trillions of floating-point operations per second) of effective compute.
• Greater Capacity per Accelerator: More memory per HBM stack allows AI chips to handle larger models and datasets on-die, further improving efficiency by reducing the need to swap data from slower system memory.
• Enhanced Energy Efficiency (per bit): While the total power consumption of an HBM3e-equipped system might be higher due to increased performance, the efficiency per bit transferred is improved, a crucial metric for large-scale data centers.

SK Hynix vs. The Competition (Samsung, Micron)

The HBM market is essentially an oligopoly dominated by three major players: SK Hynix, Samsung, and Micron. Each company is racing to bring their advanced HBM3e offerings to market, but they have varying strengths and market penetration:

• SK Hynix: Widely recognized as a leader in HBM, having been a primary supplier for NVIDIA’s current-generation AI GPUs. Their 12-layer HBM3e is a testament to their continued innovation in stacking technology and bandwidth optimization. Their early mass production for Q3 2024 gives them a critical first-mover advantage, particularly in securing design wins for upcoming AI accelerator platforms.
• Samsung: A formidable competitor, Samsung also boasts advanced HBM technology. They have announced their own HBM3e offerings, including 12-layer stacks, with competitive performance metrics. Samsung’s strength lies in its integrated semiconductor ecosystem, which allows for potentially tighter integration between memory and their foundry services. They are aggressively pushing their HBM capabilities to capture a larger share of the burgeoning AI memory market.
• Micron: While traditionally having a smaller share in the HBM market, Micron is also making significant strides with its HBM3e solutions, including an 8-layer stack that matches some performance aspects of competitors’ 12-layer designs due to innovative architecture. Their recent qualification with NVIDIA for some HBM3e products indicates a growing presence and makes them a serious contender.

Market Perspective: Adoption Challenges and Growth Potential

The adoption of HBM3e, despite its clear advantages, comes with its own set of challenges:

• Cost: HBM is significantly more expensive than traditional DRAM due to its complex manufacturing process, including TSV drilling and precise die stacking. This adds substantially to the overall cost of AI accelerators and servers.
• Supply Chain: The specialized manufacturing processes mean that HBM supply can be constrained. Long lead times and concentrated manufacturing hubs can create bottlenecks, making SK Hynix’s mass production announcement even more critical.
• Integration Complexity: Integrating HBM requires sophisticated co-design with the AI accelerator, involving intricate interposer technology and thermal solutions.

Despite these challenges, the growth potential for HBM3e is astronomical. The relentless demand for AI compute, particularly for LLMs and generative AI, ensures that HBM will remain a high-growth segment. Analysts project the HBM market to grow significantly year-over-year, driven by this persistent demand. SK Hynix’s strategic move to mass produce 12-layer HBM3e by Q3 2024 positions them to capitalize heavily on this growth, solidify their market leadership, and potentially impact their financial performance favorably, making them a key player to watch in the investment landscape. The race is on, and SK Hynix has just taken a decisive step forward.

The Future Is Fast: SK Hynix Paving the AI Highway

SK Hynix’s commitment to the mass production of its 12-layer HBM3e by Q3 2024 marks a pivotal moment in the ongoing artificial intelligence revolution. This isn’t just another incremental upgrade; it’s a strategic technological leap that directly addresses the most pressing bottleneck in high-performance AI: memory bandwidth and capacity. By enabling AI accelerators to process unprecedented volumes of data at astonishing speeds, HBM3e will unlock the next generation of AI models, fostering innovation across every industry from healthcare to finance. SK Hynix’s proactive approach solidifies its position as a critical enabler of the AI ecosystem, driving both technological advancement and significant financial impact within the semiconductor industry. As AI continues its explosive trajectory, HBM3e will serve as the indispensable high-speed highway, ensuring that data flows freely and efficiently to power the intelligent future we are rapidly building.

Burning Questions and Core Concepts About HBM3e

Frequently Asked Questions

1. What makes SK Hynix’s 12-layer HBM3e different from previous HBM versions? SK Hynix’s 12-layer HBM3e significantly enhances both capacity and bandwidth. It stacks twelve DRAM dies, offering up to 36GB or 48GB per stack, a considerable increase over HBM3’s typical 24GB. Crucially, it boosts bandwidth to over 1.18 TB/s, a substantial leap from HBM3’s ~819 GB/s, enabling much faster data transfer to AI accelerators.

2. Why is the “e” in HBM3e important for AI? The “e” stands for “extended” or “enhanced,” indicating a performance-optimized variant of HBM3. For AI, this means higher bandwidth and often greater capacity per stack, which are critical for training and running large language models (LLMs) and complex deep learning networks that require massive data throughput and memory to store billions of parameters.

3. Which AI accelerators are expected to use SK Hynix’s 12-layer HBM3e? Advanced AI accelerators from major players like NVIDIA (e.g., Blackwell and future Hopper iterations), AMD (e.g., Instinct MI series), and potentially custom silicon designs from hyperscalers like Google (TPUs) are prime candidates to integrate 12-layer HBM3e to power their next-generation AI platforms.

4. How does HBM3e impact the cost of AI servers? HBM3e is a premium memory technology, significantly more expensive to manufacture than traditional DRAM due to its complex stacking and TSV processes. This higher component cost directly contributes to the overall higher price of AI accelerators and servers that utilize HBM3e, though this is offset by the dramatic performance gains.

5. What challenges does SK Hynix face in bringing 12-layer HBM3e to market? Key challenges include ensuring consistent high-yield mass production for such a complex stacked technology, managing stringent quality control, navigating the intense competitive landscape with Samsung and Micron, and securing design wins with key AI accelerator developers amidst evolving supply chain dynamics.

Essential Technical Terms Defined

1. HBM (High Bandwidth Memory): A type of computer memory interface for 3D-stacked synchronous dynamic random-access memory (SDRAM) that provides higher bandwidth and lower power consumption in a more compact form factor than conventional DRAM.
2. Through-Silicon Via (TSV): A vertical electrical connection (interconnect) that passes completely through a silicon wafer or die, enabling compact 3D stacking of chips while minimizing wire length and latency.
3. Mass Production: The manufacturing of large quantities of standardized products, often using assembly line techniques, signifying readiness for widespread commercial deployment.
4. AI Accelerator: Specialized hardware designed to speed up artificial intelligence and machine learning workloads, typically featuring highly parallel architectures optimized for matrix multiplication and other common AI operations.
5. Gigabytes per second (GB/s): A unit of data transfer rate, representing billions of bytes transferred per second, commonly used to measure memory bandwidth. TeraBytes per second (TB/s) is 1000 GB/s.
6. Die Stacking: A 3D integration technology where multiple semiconductor dies are vertically stacked and interconnected, enabling increased memory capacity and shorter data paths.
7. Thermal Dissipation: The process of removing excess heat from electronic components to maintain optimal operating temperatures and prevent performance degradation or damage.
8. Large Language Model (LLM): A type of artificial intelligence model trained on vast amounts of text data, capable of understanding, generating, and processing human language for a wide range of tasks.
